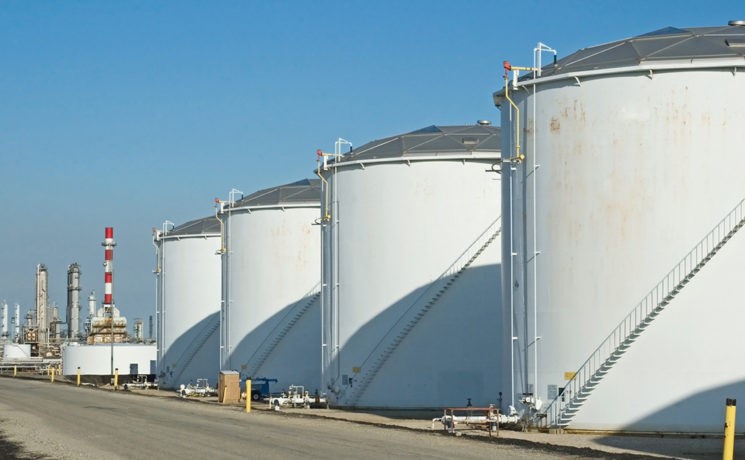

Tank Gauging system involves installation of high accurate fuel level Flexible Level sensors inside the above ground fuel tanks in a fuel depot. The fuel level sensors are connected to an Automatic Tank Gauging Console mounted inside Manager’s Office using communication data cables. The fuel level data is displayed on the ATG Console in real time.
The ATG Console has an inbuilt Ethernet port for connection to the internet. The client can access the reports on the tank inventory from the station remotely at any given time and place, The data is also accessible either on a Web browser, on an App installed on a Local PC and also on Mobile phones. The MagFlex probes set includes the Probe/Level Sensor, Water and Product Level Float Kits, Weight & Magnetic base and probe fittings.
Key Features
- Built with flexible corrugated stainless steel for easy installation and accurate monitoring in a wide range of fluid materials.
- Supports aboveground tanks from 5’ to 70’ in height
- Provides a single point of monitoring for aboveground and underground storage tanks through one tank gauge console
- Monitor product level, water level and temperature through one tank opening
Key Benefits
- Single point of monitoring for UST and AST sites:Site owners can now monitor their aboveground storage tanks levels remotely by a click of a button.
- Water Detection:Water detection is standard with the optional Low level detection
- Water Float System: The standard water float preassembled detects water at the 5.5” level and the optional low water detection kit is available for water detection at the 1.9” level (requires 4” tank opening)
- Wired Application: Accommodates traditional wired installation when wireless is notpractical.
- Rely on field-proven digital magnetostrictive technology(now in a flexible probe design): Flexible probe design makes transportation and installation easy
- Accuracy:The probe has the accuracy of 0.01% of full insertion length and has sensors that provide fuel temperature and temperature-compensated volumereadings
- Optimize site configurations with a scalable Console portfolio:Multitech offers a wide range of consoles tobest suit the various AST site configurations
- Stainless steel probe shaft provides increased protection of the mag-wire and probedurability
